Technology is introduced

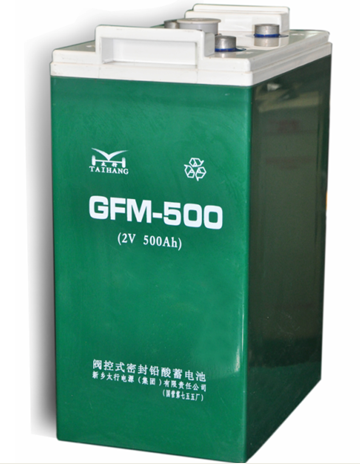

A, series of lead-acid storage battery is high quality, unique lead alloy plate grid skeleton, with unique formula is the cathode active lead paste, the series of battery with safe and reliable, easy to use maintenance, low self-discharge, small internal resistance, wide working temperature range, etc.
Second, the series are widely used in battery uninterruptible power supply (UPS) system, mining vehicles, post and telecommunications, railway vehicles, metro light rail, instruments, wireless communication, lighting, electric vehicles and other fields.
Product technical parameters:
型號(hào) Models | 額定電壓 Nominal Voltage (V ) | 額定容量 Rated Capacity （Ah） | 最大外形尺寸 Dimension（mm） | 重量Weight （kg） | 端子 | 殼體材料 | 國(guó)外型號(hào) | |||
長(zhǎng) （±1） | 寬 （±1） | 高 （±1） | 總高（±1） | |||||||
3-FM-4.0 | 6 | 4.0 | 70 | 47 | 101 | 106 | 0.70 | T1 | ABS | — |
3-FM-4.5 | 6 | 4.5 | 70 | 47 | 104 | 104 | 0.73 | T1 | ABS | — |
3-FM-5.0 | 6 | 5.0 | 50 | 47 | 101 | 106 | 0.78 | T1 | ABS | — |
3-FM-7.0 | 6 | 7.0 | 151 | 34 | 94 | 100 | 1.10 | T1 | ABS | — |
3-FM-10 | 6 | 10.0 | 151 | 50 | 94 | 100 | 1.67 | T1 | ABS | — |
3-FM-12 | 6 | 12.0 | 151 | 50 | 94 | 100 | 1.80 | T1 | ABS | — |
3-FM-14 | 6 | 14.0 | 151 | 34 | 94 | 100 | 2.00 | T1 | ABS | — |
6-FM-2.6 | 12 | 2.6 | 70 | 48 | 98 | 103 | 0.83 | T1 | ABS | — |
6-FM-4.0 | 12 | 4.0 | 90 | 70 | 101 | 106 | 1.33 | T1 | ABS | — |
6-FM-4.5 | 12 | 4.5 | 90 | 70 | 101 | 106 | 1.46 | T1 | ABS | — |
6-FM-5.0 | 12 | 5.0 | 90 | 70 | 101 | 106 | 1.55 | T1 | ABS | — |
6-FM-6.5 | 12 | 6.5 | 151 | 65 | 94 | 100 | 1.95 | T1 | ABS | — |
6-FM-7.0 | 12 | 7.0 | 151 | 65 | 94 | 100 | 2.13 | T1/T2 | ABS | — |
6-FM-7.5 | 12 | 7.5 | 151 | 65 | 94 | 100 | 2.45 | T1/T2 | ABS | — |
6-FM-9.0 | 12 | 9.0 | 151 | 65 | 94 | 100 | 2.50 | T1/T2 | ABS | — |
6-FM-10 | 12 | 10.0 | 151 | 65 | 94 | 100 | 3.30 | T251 | ABS | — |
6-FM-17 | 12 | 17.0 | 181 | 77 | 167 | 167 | 5.30 | T3/T13 | ABS | — |
6-FM-18 | 12 | 18.0 | 181 | 77 | 167 | 167 | 5.60 | T3/T13 | ABS | — |
6-FM-20 | 12 | 20.0 | 181 | 77 | 167 | 167 | 5.80 | T3/T13 | ABS | — |
6-GFM-26 | 12 | 26.0 | 175 | 166 | 125 | 125 | 7.8 | T4/T13 | ABS | — |
6-GFM-28 | 12 | 28.0 | 175 | 166 | 125 | 125 | 8.6 | T4/T13 | ABS | — |
